Down channel

A down channel has the function of a master channel. The channel couplings that it triggers implicitly initiate the different phases of the erosion process.

The channel couplings must be executed in a fixed sequence. The sequence for an EDM program is as follows:

  1. Start the main NC program in the down channel.
  2. Positioning
  3. Activate the escape channel.
  4. Start the erosion process on a path (optional).
  5. Activate the orbit channel and start the erosion process for orbiting. (optional)
  6. Deactivate the auxiliary channels.
  7. Electrode escape and end of machining

Attention

attention

When coupling/decoupling, the channels must be at standstill.

If this is not the case, error ID 51021 is output.

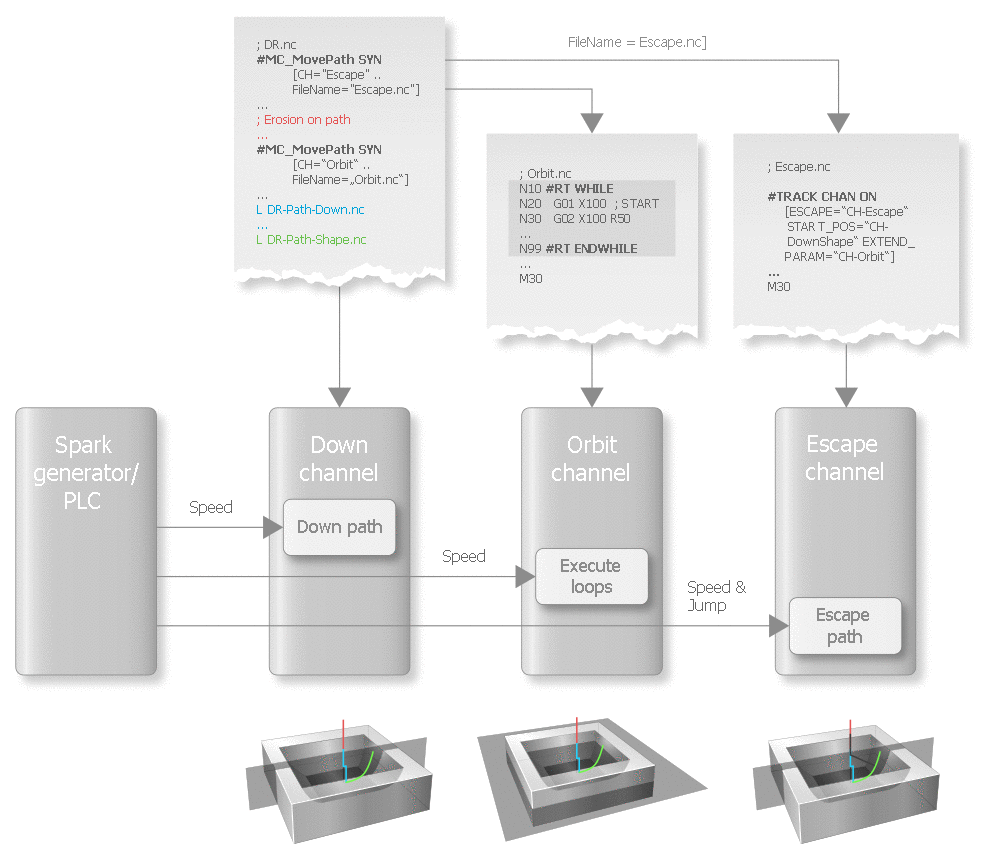

Machining phases during die sinking
Machining phases during die sinking
