MCV_ChgParamValue
Change parameter value
To prevent problems caused by incorrect parameterisation, this block does not change the original parameter set but creates a copy and writes the changes to it. The copy is referred to as the work list in this documentation.
The original parameter set need not correspond to the currently active parameter data record. It is selected by specifying its identifier at the ”NcParamSetIDIn” input.
Notice

This function block is not available in TwinCAT systems..
Notice

The modified parameters in the work list are only adopted by the ISG-MCP and only take effect after they are activated by the MCV_ActivateParamChg function block.

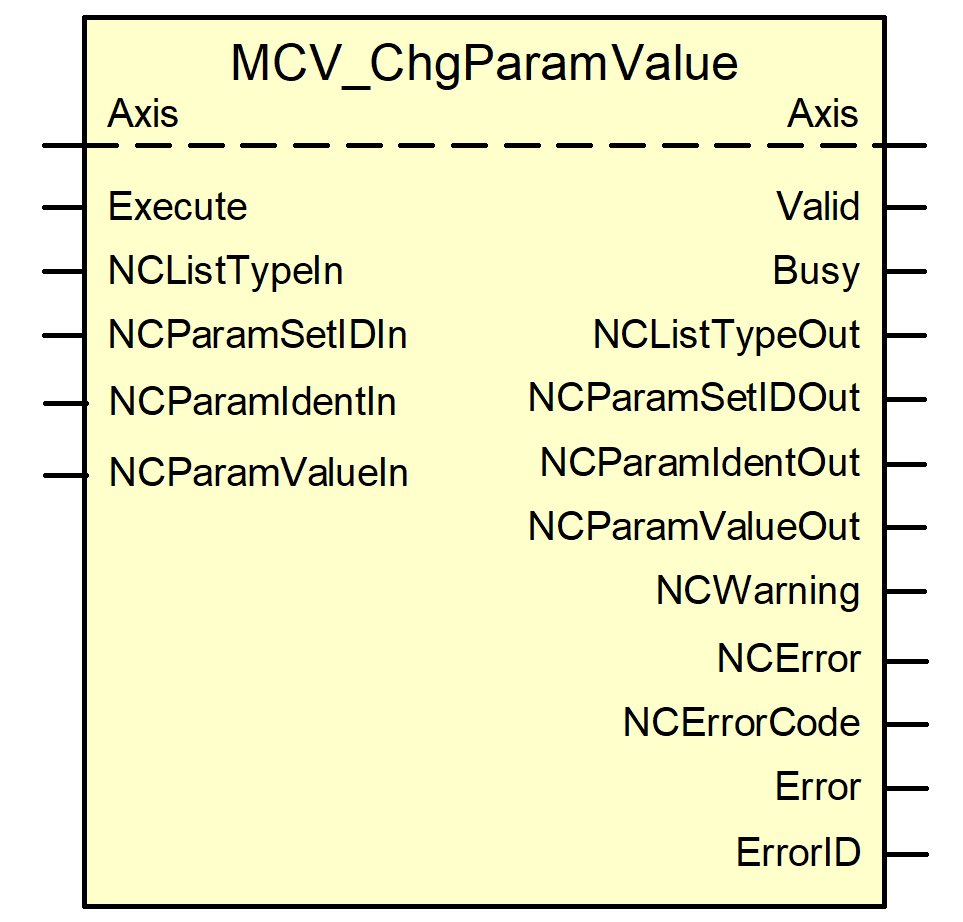

Block diagram

FB parameters
VAR_IN_OUT | ||
Variable name | Data type | Description |
Axis | AXIS_REF | Axis reference |
VAR_INPUT | ||
Variable name | Data type | Description |
Execute | BOOL | A change of parameter value is executed on a rising edge. |
NCListTypeIn | STRING | Identifier for parameter or list type |
NCParamSetIDIn | UINT | Number of the parameter set where the parameter value is to be changed. |
NCParamIdentIn | STRING | Identifier of parameter to be changed, |
NCParamValueIn | STRING | New value of the parameter.. |
VAR_OUTPUT | ||
Variable name | Data type | Description |
Valid | BOOL | Is TRUE when the parameter set change was executed successfully. |
Busy | BOOL | Is TRUE if the FB is still active. |
NCListTypeOut | STRING | Identifier for parameter or list type |
NCParamSetIDOut | UINT | Number of the parameter set where the parameter value was/is to be exchanged. |
NCParamIdentOut | STRING | Identifier of parameter to be changed |
NCParamValueOut | STRING | New value of the parameter.. |
NCWarning | BOOL | Is TRUE if a warning occurred in the ISG-MCP. |
NCError | BOOL | Is TRUE if an error occurred in the ISG-MCP while a parameter value is changed. |
NCErrorCode | UDINT | Error code of the error or warning occurring in the ISG-MCP. |
Error | BOOL | Is TRUE if the FB is in error state. The change in the parameter value was not executed successfully. |
ErrorID | WORD | Error code |
1) Availability is dependent on the MCE used.
Behaviour of the FB:
- The FB is in an error state if "Error" = TRUE. The parameter was not written to the work list. An error occurred either in the function block itself or in the ISG-MCP. The "NCError" output parameter indicates whether an error occurred in the ISG-MCP.
- A frequent cause of ISG-MCP errors are absent write access or a write-protected work list since in these cases, a work list was not created or a parameter cannot be written.
