Using kinematics in die sinking

It is only possible to use kinematics in the die sinking configuration under the following two conditions:

  1. The forward and backward transformation of the kinematic used must be unique. If a TcCOM transformation is used, the Boolean value f_UniqueTrafo must be set since a TcCOM transformation is normally not interpreted as unique.
  2. Motions where kinematics have an influence on axis motions may only be programmed for erosion on the path (in the following example, motion of the C axis). The influence In the down channel geometry cannot be considered due to the 2D superposition of the down/escape channels.

In order to use kinematics, the kinematics in the down channel must be selected before activation of the escape channel. The identical kinematics must be activated in the escape channel before the geometry. It may not be deselected in the escape channel before program end.

Example

example

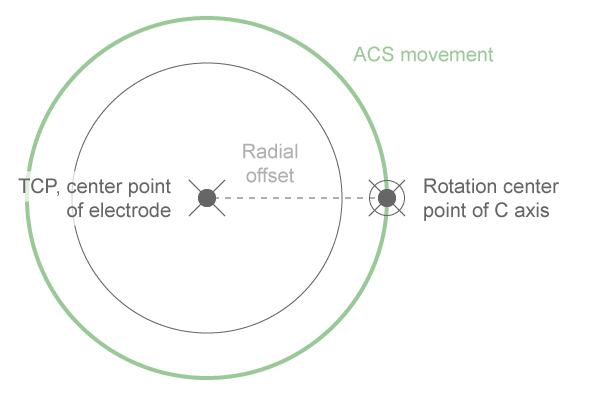

Offset of the electrode centre point in relation to the C axis

In subsequent NC programs for the down and escape channels, the kinematics in the figure are defined as TcCOM transformation ID 503 with the radial offset in parameter 4. With this kinematic, a compensation motion must be executed when the C axis is moved so that the electrode centre point remains at the same position.

C axis motion with transformation
C axis motion with transformation

Programing Example

prg_example

Down channel

%Test_kinematic

N0550 #KIN ID[503]

N0560 V.G.KIN[503].PARAM[4] = 100000 ;radial offset

N0580 #TRAFO ON

N0590 G00 Y-7.07 X0 Z17.07 C10 ;positioning

; ---------------------------------------------

N0610 #CS ON [EOP] [0, 0, 0, 0, 0, 0] ;define CS for erosion on the path

N0620 L DS-ActivateEscape.sub

N0630 LL EDMOn

N0640 G01 Z7.07 C20 F30 ;path geometry

N0645 G01 Y0 Z0 C0

N0650 #CHANNEL INTERFACE OFF[ESCAPE WAIT]

N0660 #CS ON [PCS] [0, 0, 0, 0, 0, 0] ;define CS for orbiting

N0670 L DS-ActivatePlanetary.sub

;…

M30

Programing Example

prg_example

Escape channel

%Test_kinematic_Escape

N040 X[SET_POSITION POS=@PL1] Y[SET_POSITION POS=@PL2] Z[SET_POSITION POS=@PL3]\
       A[SET_POSITION POS=@PL10] B[SET_POSITION POS=@PL11] C[SET_POSITION POS=@PL12]

N050 #SET SLOPE PROFIL [0]

N070 #KIN ID[503]

N080 V.G.KIN[503].PARAM[4] = 100000 ;radial offset

N090 #TRAFO ON

N095 #ESCAPE PATH DEF BEGIN

N100 #CS ON [APP] [@PL4,@PL5,@PL6,@PL7,@PL8,@PL9]

N120 #ESCAPE PATH BACKWARD STOP

N130 G01 Z7.07 C20 F30 ;path geometry

N140 G01 Y0 Z0 C0

N150 #CS DEL ALL

N170 #ESCAPE PATH DEF END

N180 #TRACK CHAN ON [ESCAPE="CH-Escape" START_POS="CH-Sinking"\

        EXTEND_PARAM="CH-Planetary"] ;activate escape channel

N190 #CHANNEL INTERFACE ON [DYN_CS]

N200 #CHANNEL SET [EXT_FEEDRATE_RESOLUTION=nm/s \
EXT_FEEDRATE_WAIT=1]

N210 #SIGNAL SYN [ID="S-EscapeReady" CH="CH-DownShape"]

N220 M30
