Position data

In general, machine drives are controlled via the down channel with an ACS position. All superimpositions can be viewed in the coordinates of each channel.

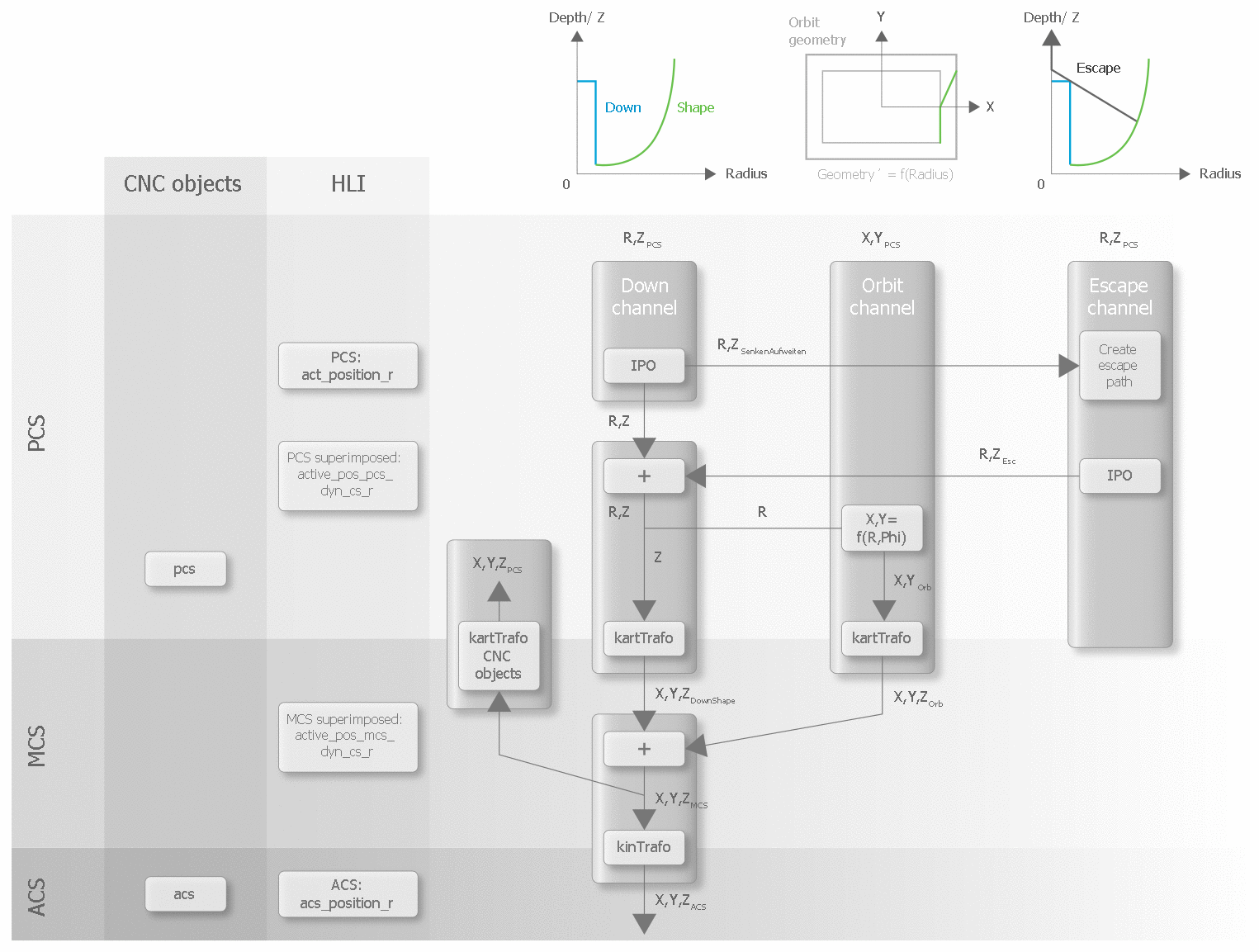

The figure below provides an overview of the position display data available on the HLI for die sinking:

Position display data
Position display data
