2-path programming: Selection/deselection of intersection point calculation (P-CHAN-00398)

P-CHAN-00398

Select/deselect calculation of intersecting points with coordinate system planes with 2-path programming

Description

With 2-path programming, the point where the tool (e.g. an eroding wire) penetrates through the defined coordinate system planes in the forward direction is calculated automatically (by the default setting). As a result, the Z coordinate is set implicitly to ZERO in the relevant coordinate system. In the backward direction, this intersection point calculation is not performed by default.

This parameter activates and deactivates intersection point calculation for Cartesian transformation in the forward and backward directions.

Parameter

coordinate_system.intersection

Data type

UNS32

Data range

1: Intersection point with X, Y and U, V planes with forward transformation

2: Intersection point with X, Y and U, V planes with backward transformation

Dimension

----

Default value

1

Remarks

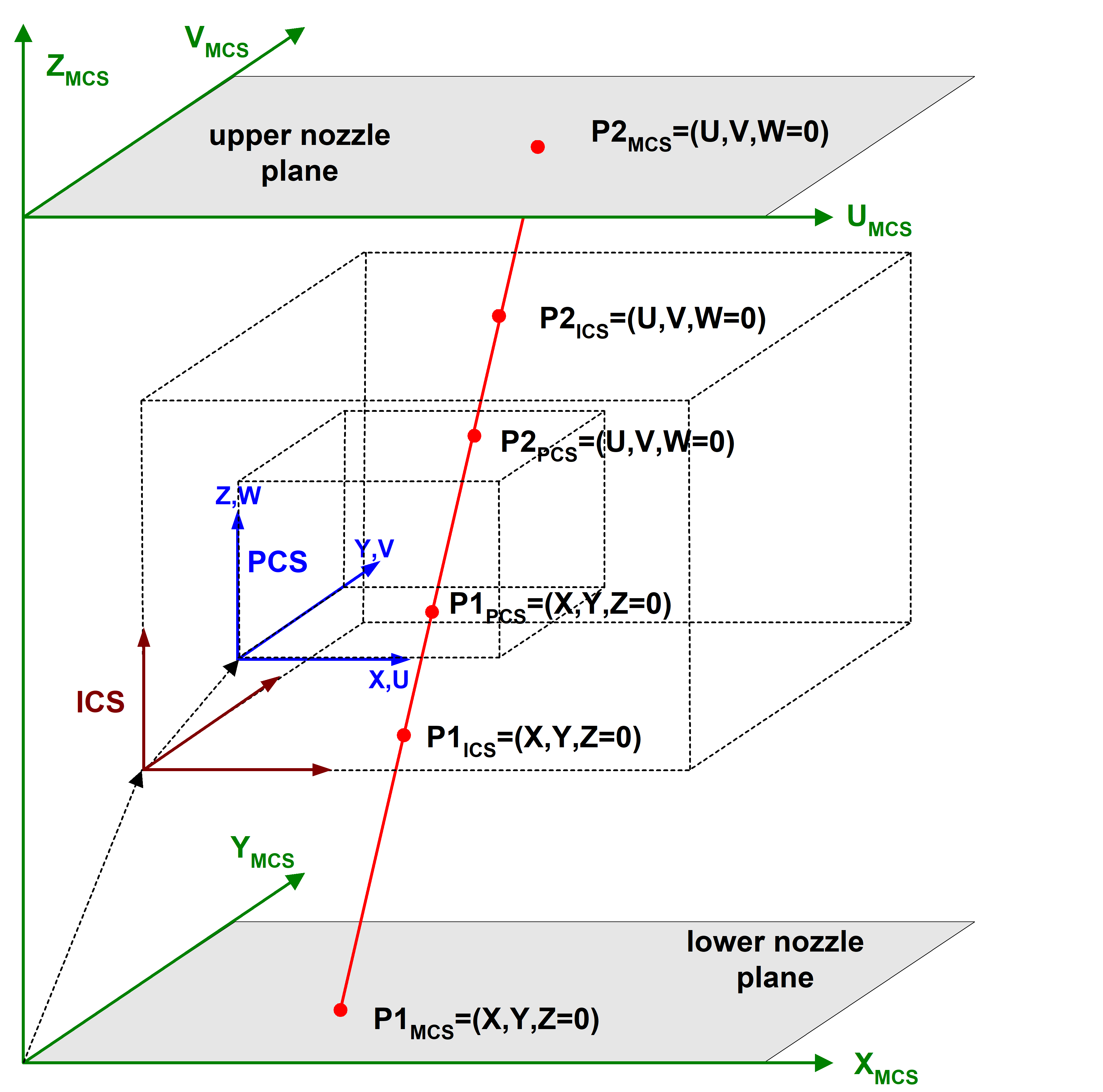

Intersection point calculation with the coordinate system planes:





Intersection point calculation with the coordinate system planes
Intersection point calculation with the coordinate system planes
